>> Liftmaster CB24 Support Diagrams <<
#1
Heres some simplified diagrams on wiring accessories to the CB24 Control board.

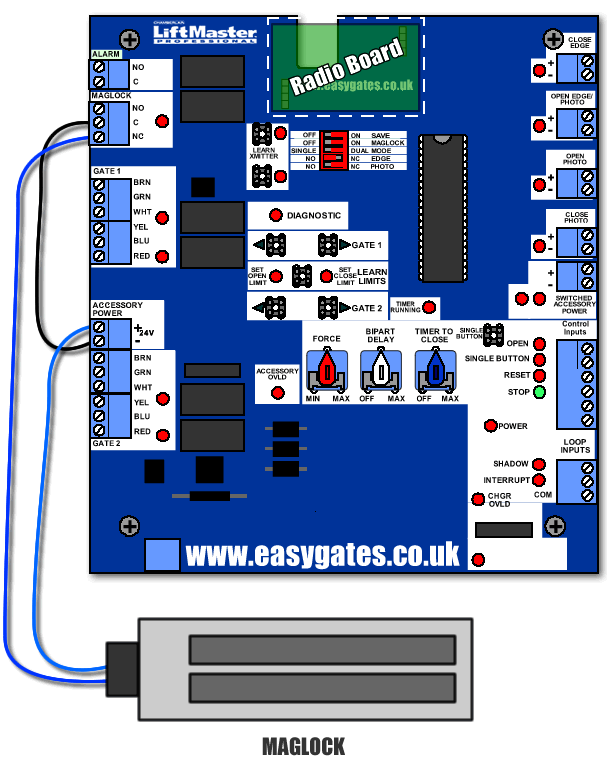

1. Wiring a Maglock to the CB24V


Attached Files Image(s)

Gate Automation and Access Control from EasyGates Retail Store

EasyGates Trade Store for Trade only

Smart Home Tech from The Smart and Secure Centre

Smart Home News from Smart Home Matters
#2

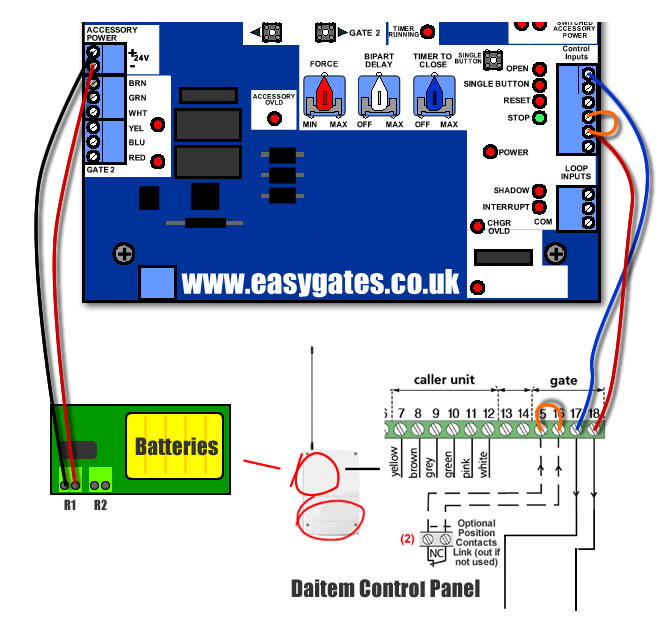

2. Wiring a Daitem Intercom into the CB24


Attached Files Image(s)

Gate Automation and Access Control from EasyGates Retail Store

EasyGates Trade Store for Trade only

Smart Home Tech from The Smart and Secure Centre

Smart Home News from Smart Home Matters
#3

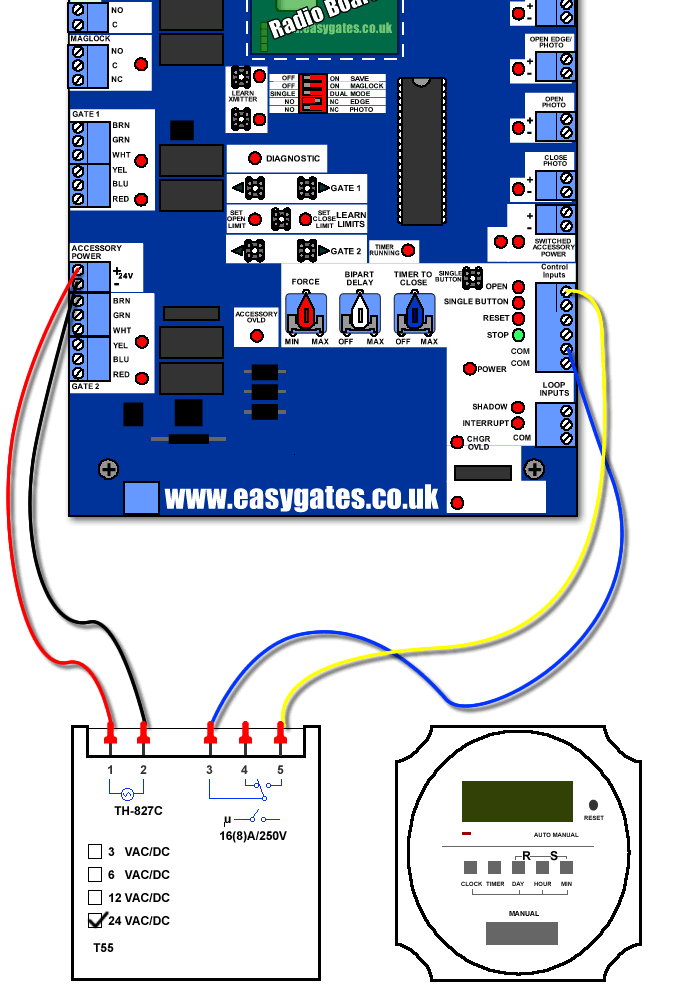

3. Wiring a 24V Time Clock into the CB24


Attached Files Image(s)

Gate Automation and Access Control from EasyGates Retail Store

EasyGates Trade Store for Trade only

Smart Home Tech from The Smart and Secure Centre

Smart Home News from Smart Home Matters
#4

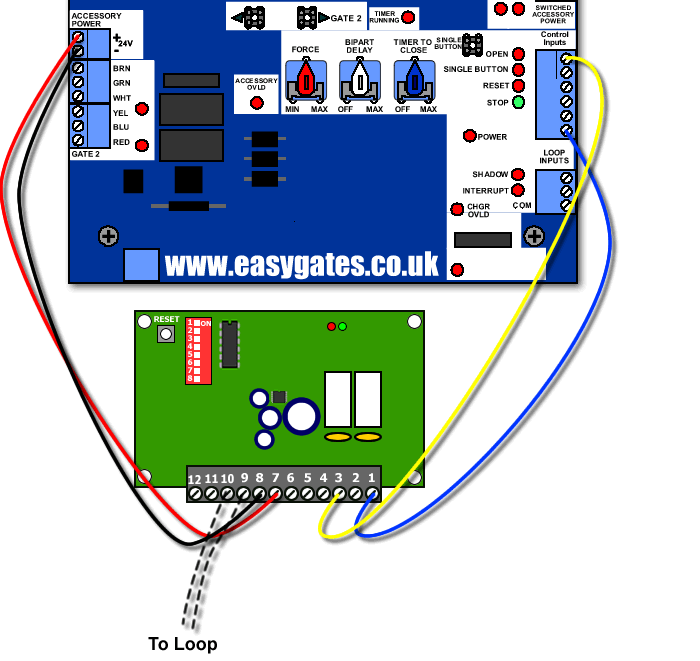

4. Wiring a Loop Detector into the CB24


Attached Files Image(s)

Gate Automation and Access Control from EasyGates Retail Store

EasyGates Trade Store for Trade only

Smart Home Tech from The Smart and Secure Centre

Smart Home News from Smart Home Matters
