CB24 Kit with a single set of photocells
|
CB24 Kit with a single set of photocells
|
|
02-06-2010, 06:11 PM
Hello,
Can anyone advise me of the correct wiring for a single set of photocells as supplied in the kit to the CB24 board? Jeremy

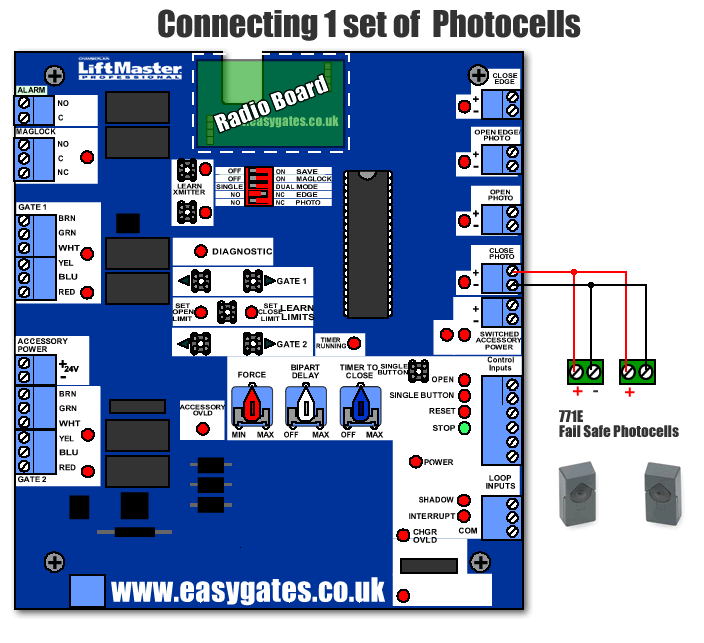

Hi, i have drawn this diagram up for you. Please let me know if you require more information. Make sure you link out 'Open Photo'
