>> Liftmaster CB11 Support Diagrams <<
easygates Offline
EasyGates Staff
*******
Posts: 138
Threads: 39
Joined: Jul 2008
Reputation: 0
#1
27-04-2009, 12:49 PM (This post was last modified: 27-04-2009, 12:55 PM by easygates.)
Simplified Wiring Diagrams of accessories to the Liftmaster CB11 Control Panel.

1. Wiring the EASYBKA Keypad to the CB11 Control Panel


Attached Files Image(s)

Gate Automation and Access Control from EasyGates Retail Store

EasyGates Trade Store for Trade only

Smart Home Tech from The Smart and Secure Centre

Smart Home News from Smart Home Matters
Website Find
easygates Offline
EasyGates Staff
*******
Posts: 138
Threads: 39
Joined: Jul 2008
Reputation: 0
#2
27-04-2009, 12:49 PM

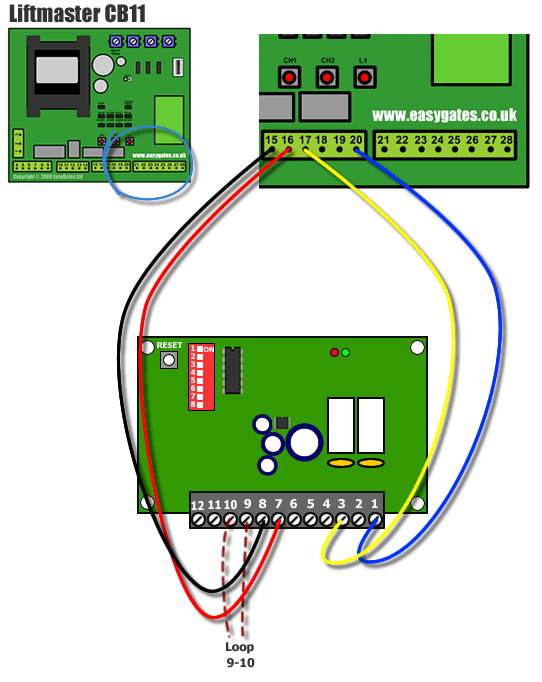

2. Wiring a Loop Detector to the CB11 Control Panel


Attached Files Image(s)

Gate Automation and Access Control from EasyGates Retail Store

EasyGates Trade Store for Trade only

Smart Home Tech from The Smart and Secure Centre

Smart Home News from Smart Home Matters
Website Find
